Hello friends,

I have had quite the interesting fiasco with my 6.5. About 2 years ago I had the engine rebuilt, and installed lots of new parts. Ported the heads and intake. ported the stock turbo exhaust housing to a much larger cavity. 4 inch exhaust. All kinds of stuff. I drove the truck for a few moths before embarking on a long trip from San Luis Obispo, CA to Nevada. While driving through the Mojave desert I start to get some high pitched squealing from the turbo. I was in the middle of nowhere, an hour and a half away from anything, so I continued on. Well unfortunately that was the wrong decision. The turbo ate itself up, and being that it is supplied oil from the engine, also decided to vent all engine oil out the exhaust. This caused the engine to run dry and slow to a halt. I was stuck in the desert for 2 days. The truck then sat in a field in the desert for the past year and a half.

Last week I retrieved the truck, bent on getting this thing going, and having a limited time frame to do so. I purchased a used 6.5 with allegedly 40K on it after a rebuild. Sounded like a good deal and I bought it for a grand. Ok now things get interesting. I have until June 20th to be out of my place. So thats the deadline to have the engine done, installed, and running. 2 weeks. This is easy for just a parts swap- but its gets more complicated.

Here's the truck after being retrieved from the desert, it has a fine layer of dust on everything:

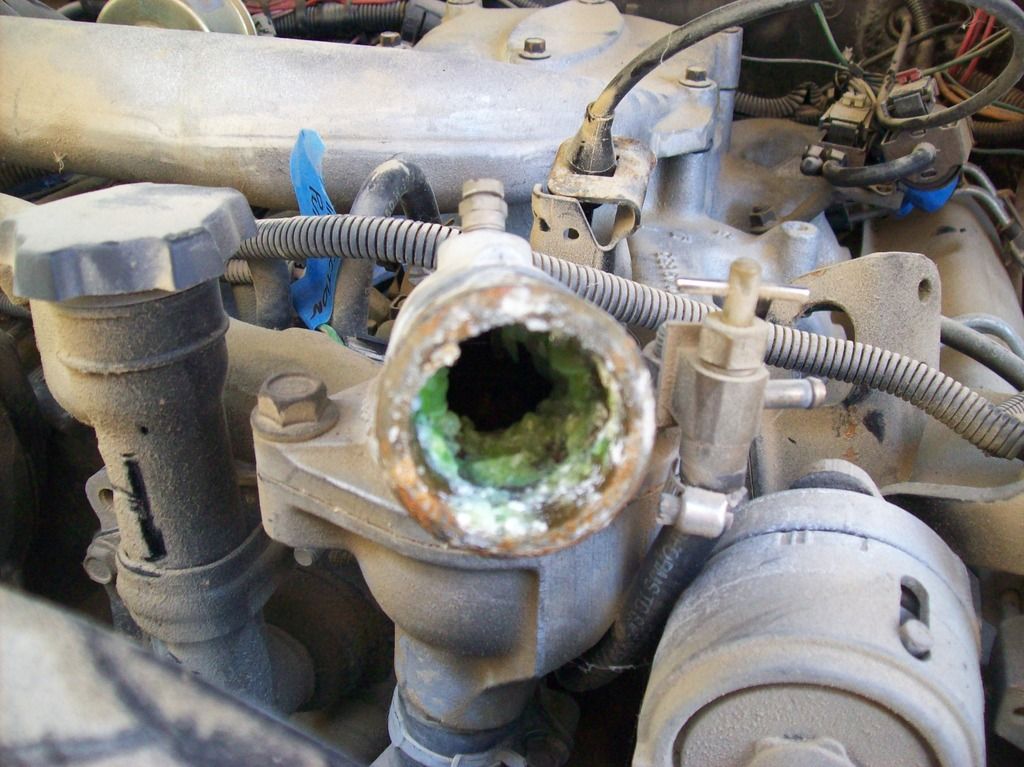

The coolant seems to have somehow crystallized:

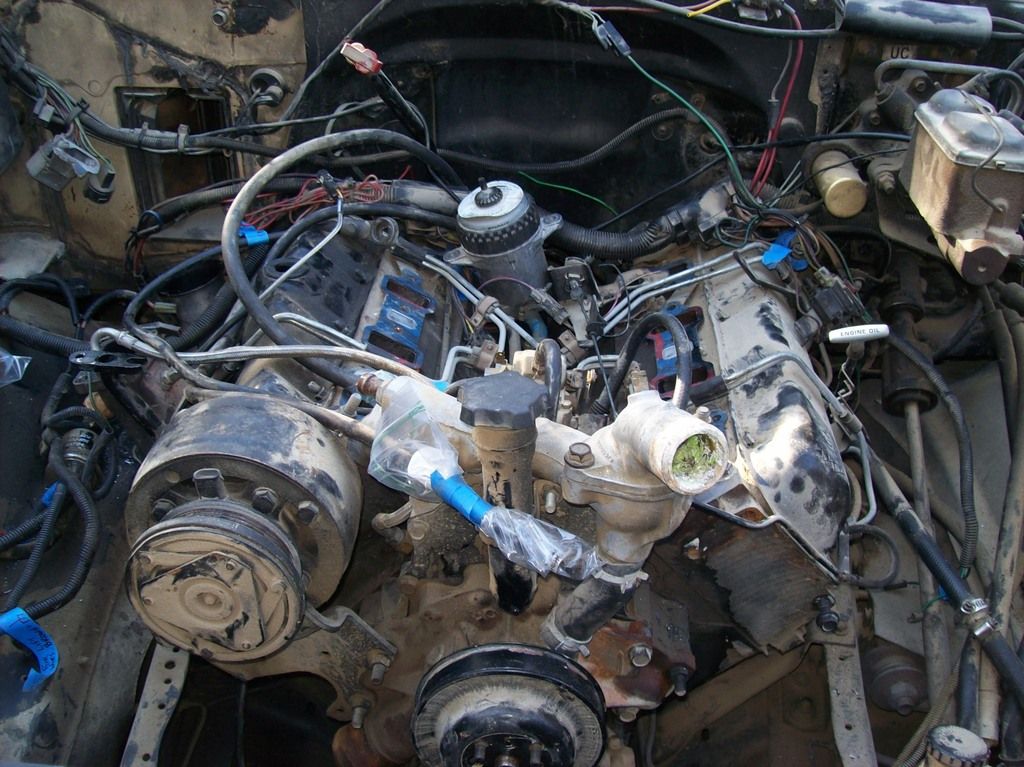

Old engine being torn down:



Because of the ported heads and intake on the old engine I could not just stick the intake on the unported heads of the "new" engine. The larger ports on the intake would cause flow reversion when the air is constricted to the smaller ports on the head. So the heads have to be swapped- not a bad idea as now I can do head gaskets too. Ok so pulled and inspected the old heads. Everything looks great. No evidence of any debris from the turbo. Having them surfaced right now.

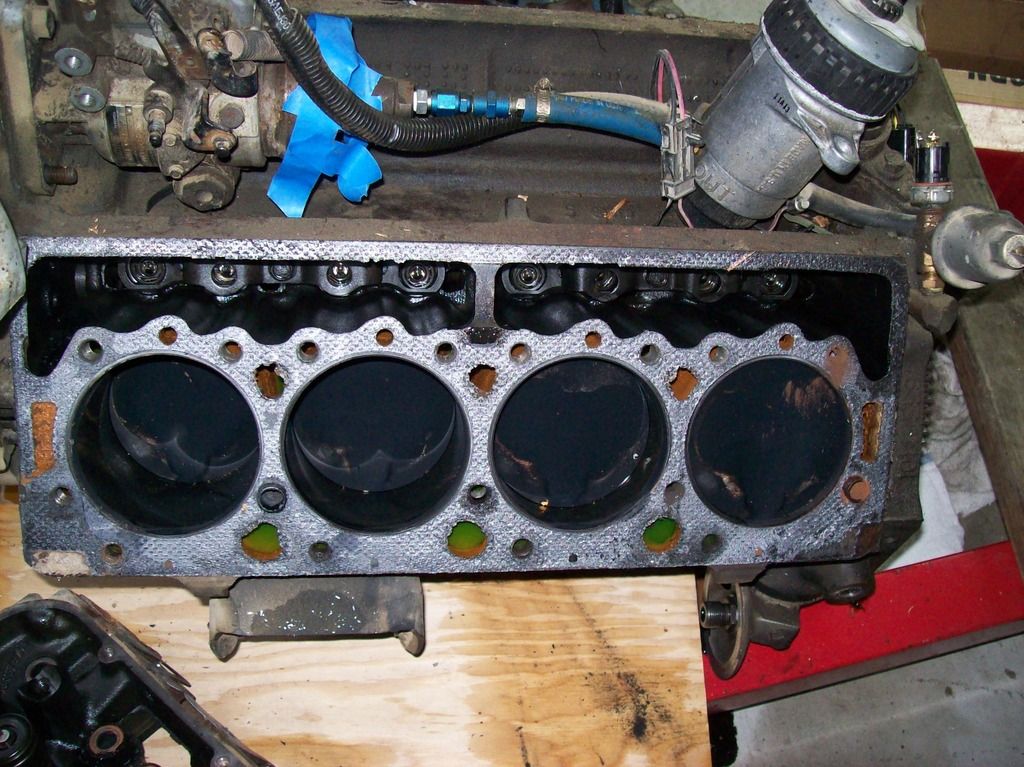

Heads and Block:





Pulled the oil pan and noticed some very fine debris, probably bearing material from the turbo, main bearings, or rod bearings. Not much of it though. Looking good.

Now I start prepping the "new" used engine and start noticing some things that dont seem right. First of all, no openings in the engine were plugged. The following orifices were open, and with evidence of fine particulate matter having entered:
oil fill neck, opening for injection pump, OPS, turbo oil supply port in block, turbo oil drain opening in block, all injector holes, all glow plug holes, all coolant openings, the dipstick opening in oil pan. That was an immediate cause for concern and made me glad I was removing the heads. Also 4 oil pan bolts were missing.
The other items I will let the pictures speak for themselves:

The block warmer seems to have been removed and a freeze plug put in its place. I dont mind that since I live in a warm climate but the plug seems to have been "hammered" in, not using the correct driver. Lots of witness marks of dents from a hammer or other small object that is not large enough to put pressure on the outer diameter of the plug:

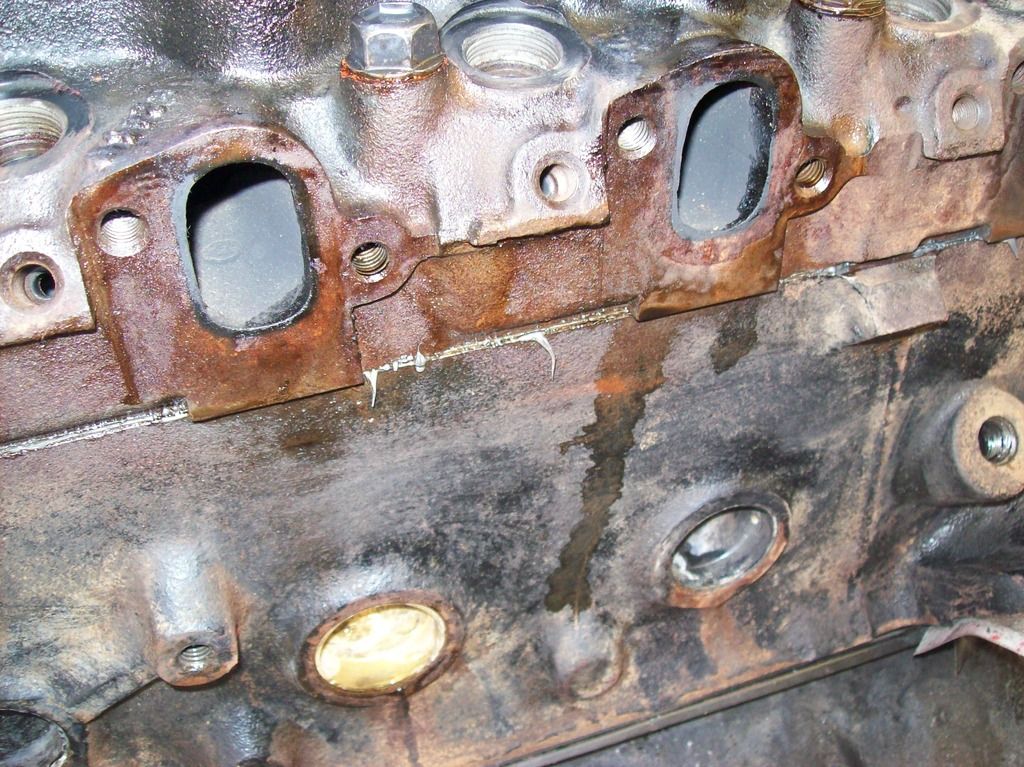

There is RTV everywhere, including on the head gaskets. Some places seem reasonable like valve covers and oil pans but I thought RTV on the head was a no-no:

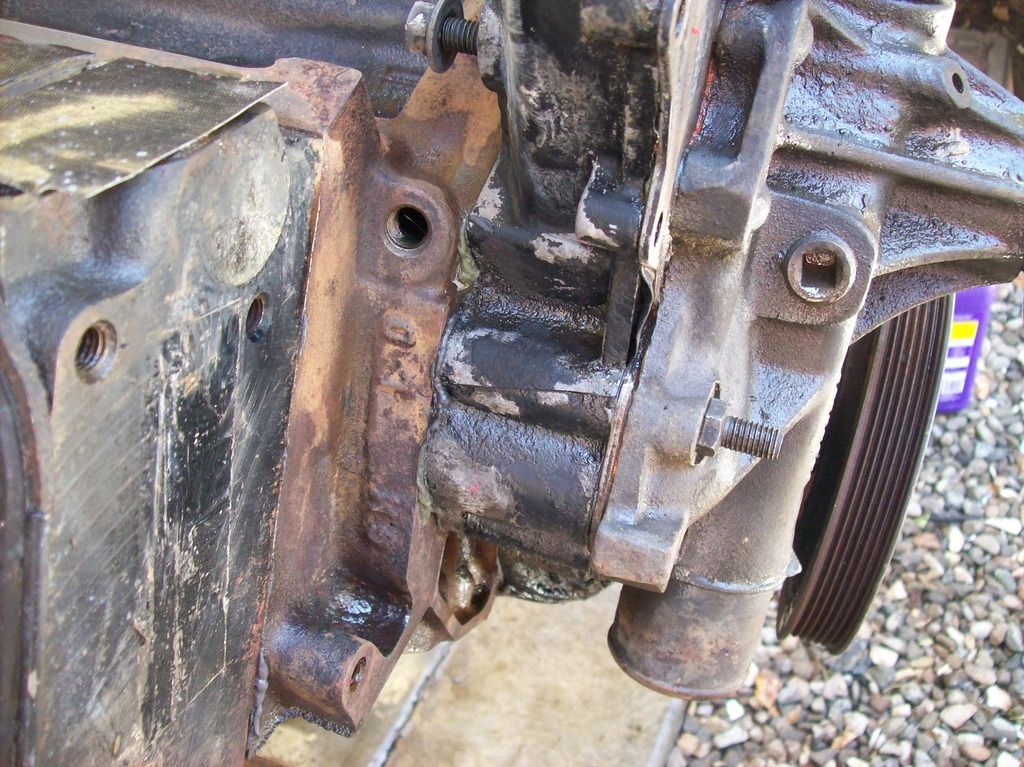

Lots of RTV, more than would seem necessary by someone knowledgeable about what they are doing:


Some of the sealnt doesnt even seem to be RTV, it looks like a clear silicone type sealant:

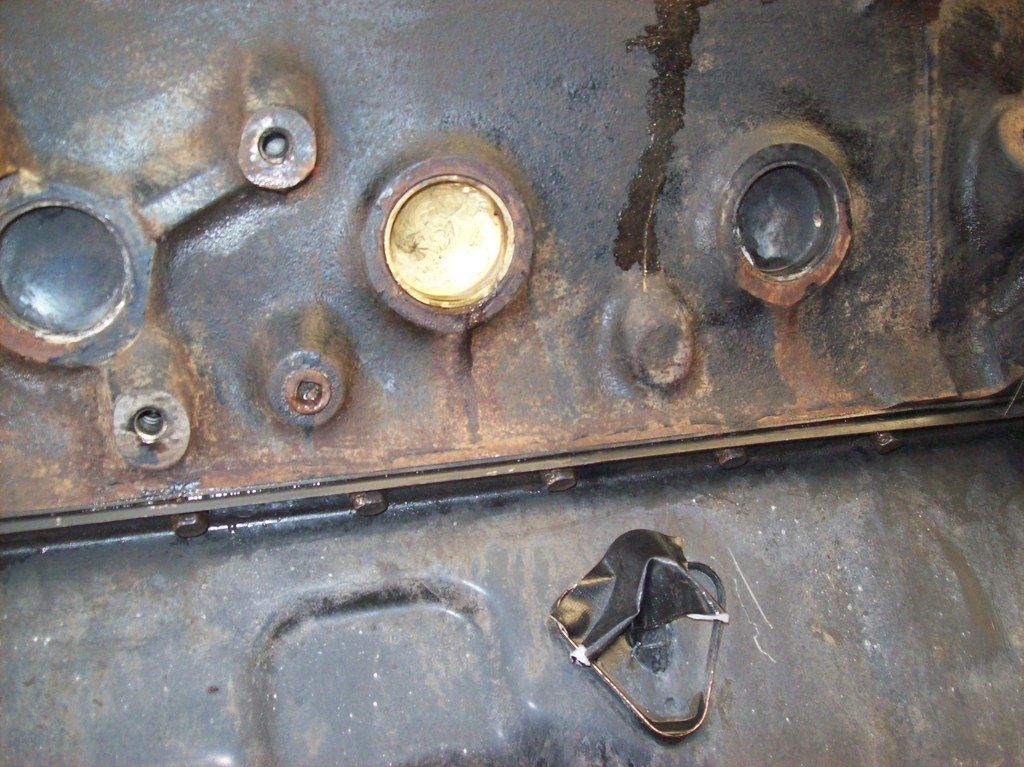

A brass pipe plug was installed instead of a normal block plug. Why I dont know. What concerns me is it looks like the plug was forced in, and possibly the incorrect thread. Look closely to the right of the plug, there is brass shaving away from the plug. Are these bore holes pipe thread? I cant imagine an experienced engine builder using one of these things nor can I imagine why someone would want to remove one in the first place?


Altogether I am somewhat concerned. All I am using from this used engine is the shortblock. I dont want to waste my time putting together this thing though if the shortblock is crap. What are some things I can do to check the engine health at this point?
A leak down test? [I dont know how to do]
Compression test? [can it be done with engine on the stand like this?]
Pull the main bearing caps?


·
Registered
Joined
·
85 Posts
Discussion Starter #2 (Edited)
Also for those interested, here is what happens when the turbo commits suicide:

Chip broken off compressor wheel:


Oil everywhere in the exhaust:


Notice I had to cut off 2 of the bolts to remove the housing. The bolts wouldnt budge and I ended up rounding their heads, necessitating cutting. Any tips for their removal would be welcomed.


The bearings self destructed and the shaft sheared:




·
Premium Member
Joined
·
9,478 Posts
IMHO, I think there is a reason the seller pulled the engine after 40,000 miles......

Your pictures show why.

To be safe, you should tear down the short block and make sure.


·
Registered
Joined
·
85 Posts
Discussion Starter #4
IMHO, I think there is a reason the seller pulled the engine after 40,000 miles......

Your pictures show why.

To be safe, you should tear down the short block and make sure.
Ok gotcha. What should I be looking for? unusual bearing wear? Wear pattern on the cylinder walls? I dont have precision instruments for measuring clearances.

What would you be looking for? I can take lots of pictures and post if you can give me some general things to look for


·
Super Moderator Eco-Logistical
Joined
·
4,271 Posts
the picture with the brass freeze plug there looks to be a large crack in the block...


·
Premium Member
Joined
·
9,478 Posts
Ok gotcha. What should I be looking for? unusual bearing wear? Wear pattern on the cylinder walls? I dont have precision instruments for measuring clearances.

What would you be looking for? I can take lots of pictures and post if you can give me some general things to look for
I've replaced head gaskets but not torn into a block. So all I can give you is my thoughts:

Main bearings: Click Here and Click Here

Cylinder deck, is it flat? use a known straight edge.

Oil pump: is the screen clean, play,

Lifters - replace?

Push rods - are they straight? Ends worn?

Rods: are they straight?

Pistons and rings: check for cracks in the pistons, scuffing on the piston skirts. Rings, check gap and for broken rings.

Crankshaft: scoring/pitting in the bearing journals, cracks, etc

Camshaft: IIRC the lobes are coated/plated so check to see if there is wear through this coating/plating.

Block: cracks in mains area and around the starter area. Cracks in the cylinder walls. look for cross hatched hone marks in the cylinder walls....this is good/ Cracks between cylinders.

Also the factory service manuals are available Click Here


·
Registered
Joined
·
85 Posts
Discussion Starter #7
I've replaced head gaskets but not torn into a block. So all I can give you is my thoughts:

Main bearings: Click Here and Click Here

Cylinder deck, is it flat? use a known straight edge.

Oil pump: is the screen clean, play,

Lifters - replace?

Push rods - are they straight? Ends worn?

Rods: are they straight?

Pistons and rings: check for cracks in the pistons, scuffing on the piston skirts. Rings, check gap and for broken rings.

Crankshaft: scoring/pitting in the bearing journals, cracks, etc

Camshaft: IIRC the lobes are coated/plated so check to see if there is wear through this coating/plating.

Block: cracks in mains area and around the starter area. Cracks in the cylinder walls. look for cross hatched hone marks in the cylinder walls....this is good/ Cracks between cylinders.

Also the factory service manuals are available Click Here
Awesome thank you very much Freddy, your help is greatly appreciated. I'm going to see how far I can get tearing the block down tonight before work, will post updates as I go. Again thank you very much. I'm on an extremely tight budget and cannot afford a machine shop to do the status check for me.

Additionally I have lots of pics of how far you can go porting the stock turbo exhaust housing collector thing, and the exhaust manifolds themselves. I had the manifolds welded in a couple places to enable more material removal. Definitely noticed a difference. Will post a thread about it once I'm done with this madness.


·
Registered
Joined
·
85 Posts
Discussion Starter #9
Ok time for a quick update before I head to work.

First thing I did was take the valve covers off. Unfortunately one of the valve covers didnt have bolts in it to secure it, and was just kind of hanging there, allowing free reign for all kinds of crap to get in. Not a big deal as I will be cleaning everything.

First thing I noticed was two head bolts are missing, not a good sign:


When taking off the bolts, they all had a red sealer type material just under the head of each bolt. Is this normal?


The red material was on all bolts:


The brass pipe plug seems to plug a water passage that needs cleaning. The threads seemed ok:


Ok everything looked alright with the heads off, not too much of anything on the pistons:


It was really hard to capture pics of the cross hatching on the piston walls, will get better ones tomorrow. Basically all the "scratches" were cross hatching from honing with a limited amount of vertical scratches. Everything seemed to look ok but will inspect in better light tomorrow.




Ok now the bottom end tear down:


Only had time to pull 3 main caps, but they all seemed to look good, I think:










Looking carefully you can see the cam lobes, with a central wear pattern. All lobes looked identical:


The bottoms of the pistons seem a little discolored, almost like burnt oil or something. Not sure if its normal:






The cross hatching in the bottom of the bores looks much better:


Some crap on the oil pump screen:


Somebody sure loves RTV!:


Some things cause me to think this thing was never ran. Look below, RTV is completely filling some of the bolt holes!


The bolts holding on the timing cover dont have the threaded end to hold on the oil fill neck:


Only two water pump bolts were on, and some of the other holes were plugged with RTV!


·
Registered
Joined
·
770 Posts
if you are worried about dirt in the oil galley and engine in general (kinda assume so from your posts) you could pull everything out of the motor and wash it out with dawn and HOT water, then using compressed air blow everything out good and let it sit for a day to finish drying. then reassemble the motor. also, it may just be the picture, but it kinda looks to me like a piston might be cracked in the first picture you posted of the head off, the far back piston


·
Registered
Joined
·
85 Posts
Discussion Starter #11
Hey guys an update.

Things are looking much better today. Pulled all the main caps and the bearings look splendid. No unusual wear and everything looks good. Pulled the Rod ends and the bearings look even better- some with only the bearing painted coating slightly removed, almost brand new. So things are looking promising. The thrust bearing also looks good, little to no wear. The assembler of the bottom end seems to be a distinctly different individual than the assembler of the rest of the engine. Still going to pull everything and check though.

Ok now I'm stuck- I can't get the damn crank timing sprocket off! The one on the cam is easy and slightly loose fitting. The sprocket on the crank is stuck and wont budge. Sprayed it with PB Blaster and tried gently prying on it but no dice. Did some searches and there's no real info on how to get the damn thing off because the 6.5 timing chain doesnt usually need to be replaced. I suppose I could pull the crank with the sprocket and chain on it? Any ideas guys?

Also the sprocket assembly is distinctly different from my other 6.5. Older 6.5:


newer engine:


What should I do to get the crank sprocket off? Or just pull the timing chain with the crank? I was thinking heating up the sprocket gently with a torch but dont want to somehow warp the crank in the process.

Other photos-
Thrust bearing looks good:




No crap in oil pump, but still going to replace:


Somebody flubbed the installation of the balancer and damaged the woodruff key. Should I replace?:


Another clue the engine may not have been run by the dingbat that assembled the top end:


The rear main is loose, but no signs of leaking or sludge or anything. Strange.

The crank balancer never bothered to deburr his work:

It bugs me and Im gonna fix it.

Whenever assembling an engine, its always a good idea to ensure no leaks. In this case though, I'm not exactly sure what the triangle of RTV is sealing:


In the surprise of the day, there was no RTV on the oil pan rails. Maybe the guy that put the rest of the stuff together was having an off day.


·
Registered
Joined
·
85 Posts
Discussion Starter #12
if you are worried about dirt in the oil galley and engine in general (kinda assume so from your posts) you could pull everything out of the motor and wash it out with dawn and HOT water, then using compressed air blow everything out good and let it sit for a day to finish drying. then reassemble the motor. also, it may just be the picture, but it kinda looks to me like a piston might be cracked in the first picture you posted of the head off, the far back piston
Thanks for the eyes. Today I went over the pistons carefully one by one and they all looked fine, no cracks. Sometimes photos have weird shadow effects.

As for cleaning, yes that is what I will do for the final wash. First clean with oven cleaner, then with degreaser, then with Dawn. I'm an engineer by trade and it drives me crazy to see all the dirt in the engine, perhaps I'm being OCD but I dont want any filth getting into the bearings and prematurely ending another engine.

Speaking of which- the OPS did me absolutely no good when my old engine lost oil pressure. Cutting the lift pump did not kill the engine. New plan: I already did the OPS relay mod but now I'm going to use the relay to activate the fuel shutoff solenoid on the IP. That should positively kill the engine if there is loss of oil pressure right? I hope so!


·
Premium Member
Joined
·
9,478 Posts
Sprocket pictures...

#1 looks like it belongs on a 1992/93 engine. These engines did not have a crank position sensor.
#2 looks like it belongs on a 1994+ engine. I believe that is the reluctor gear the crank position sensor reads.

The harmonic balancer is different for 1992/93 and 1994+ engine.


·
Registered
Joined
·
2,532 Posts
Throw a Cloyes or GEP timing set on there while it's apart. As mentioned, use the gear with reluctor, matching timing cover with Crank Position Sensor, and matching harmonic balancer if you will run a DS4 injection pump. These three items are matched depending on mechanical or electronic injection.

To get the crank gear off, heat lightly to 250 degrees with some MAPP or Propane gas. It'll pull off without any fuss. Put some tension on the puller before heating and it'll POP when it's warm enough.

Getting it that warm won't hurt the bearings by burning oil in them. Same procedure to get it back on.


·
Super Moderator Eco-Logistical
Joined
·
4,271 Posts
I still see a crack in the block...

  • Like
Reactions: quadstar87

·
Super Moderator Eco-Logistical
Joined
·
4,271 Posts
Thanks for the eyes. Today I went over the pistons carefully one by one and they all looked fine, no cracks. Sometimes photos have weird shadow effects.

As for cleaning, yes that is what I will do for the final wash. First clean with oven cleaner, then with degreaser, then with Dawn. I'm an engineer by trade and it drives me crazy to see all the dirt in the engine, perhaps I'm being OCD but I dont want any filth getting into the bearings and prematurely ending another engine.

Speaking of which- the OPS did me absolutely no good when my old engine lost oil pressure. Cutting the lift pump did not kill the engine. New plan: I already did the OPS relay mod but now I'm going to use the relay to activate the fuel shutoff solenoid on the IP. That should positively kill the engine if there is loss of oil pressure right? I hope so!
I don't think the OPS is supposed to kill the motor, it's supposed to kill the fuel lift pump so it does not continue to pump fuel if the motor dies in an accident...

only you, and friction will stop the motor in the event of oil loss...


·
Registered
Joined
·
2,979 Posts
I don't think the OPS is supposed to kill the motor, it's supposed to kill the fuel lift pump so it does not continue to pump fuel if the motor dies in an accident...

only you, and friction will stop the motor in the event of oil loss...
^ Yep, that's what GM designed it for. It would be nice to have it work that way but this was more safety of the passengers in an accident.


·
Registered
Joined
·
85 Posts
Discussion Starter #18
Sprocket pictures...

#1 looks like it belongs on a 1992/93 engine. These engines did not have a crank position sensor.
#2 looks like it belongs on a 1994+ engine. I believe that is the reluctor gear the crank position sensor reads.

The harmonic balancer is different for 1992/93 and 1994+ engine.
Excellent thanks for the advice, I was wondering what was going on. Yes I have a 93 engine with the mechanical IP. Here's some pics of the later balancer and sprocket vs. my Fluidamper balancer, spacer, and sprocket:




I guess I'll be getting the 93 timing set then


·
Registered
Joined
·
85 Posts
Discussion Starter #19 (Edited)
Throw a Cloyes or GEP timing set on there while it's apart. As mentioned, use the gear with reluctor, matching timing cover with Crank Position Sensor, and matching harmonic balancer if you will run a DS4 injection pump. These three items are matched depending on mechanical or electronic injection.

To get the crank gear off, heat lightly to 250 degrees with some MAPP or Propane gas. It'll pull off without any fuss. Put some tension on the puller before heating and it'll POP when it's warm enough.

Getting it that warm won't hurt the bearings by burning oil in them. Same procedure to get it back on.
Thank you for the advice! It was the only way to get it off! Even with heat from a mapp torch it still took a breaker bar on the puller to get the sprocket off. And it fought the whole way, to the very last 1/4" of being on the crank!



·
Registered
Joined
·
85 Posts
Discussion Starter #20
I still see a crack in the block...
I take your observation seriously and am trying to discern what artifact you are seeing. Is it the scratch in the following picture? I tried to hit it with a wire brush to show its a scratch:
